AEMC Digital Multimeter, 1000V, 20A, 50 MOhms

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Digital Multimeter, Max. AC Volts 1000, Max. DC Volts 1000, Max. AC Amps 20, Max. DC Amps 20, Max. Ohms 50 M Ohms, Basic DC Accuracy 0.0008, Counts 100, 000, Battery Type Rechargeable AAA, Safety Rating CAT III 1000V, CAT IV 600V, Audible Continuity Yes, AC Response True RMS, Capacitance Range 100nF to 10mF, Frequency Counter Range 10, 000 Hz to 2 MHzIncludes (2 Sets) 1.5m Color Coded (Red/Black) Leads, (2) Spare Fuses, TAS Adapter M to F Mini, USB Optic Cable, 110V US Power Supply, Software On CD

Grainger Item #	6YPR7
Price (ea.)	$949.50
Brand	AEMC
Mfr. Model #	MTX 3283B-BOMBM
UNSPSC #	41113630
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	4.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	France

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

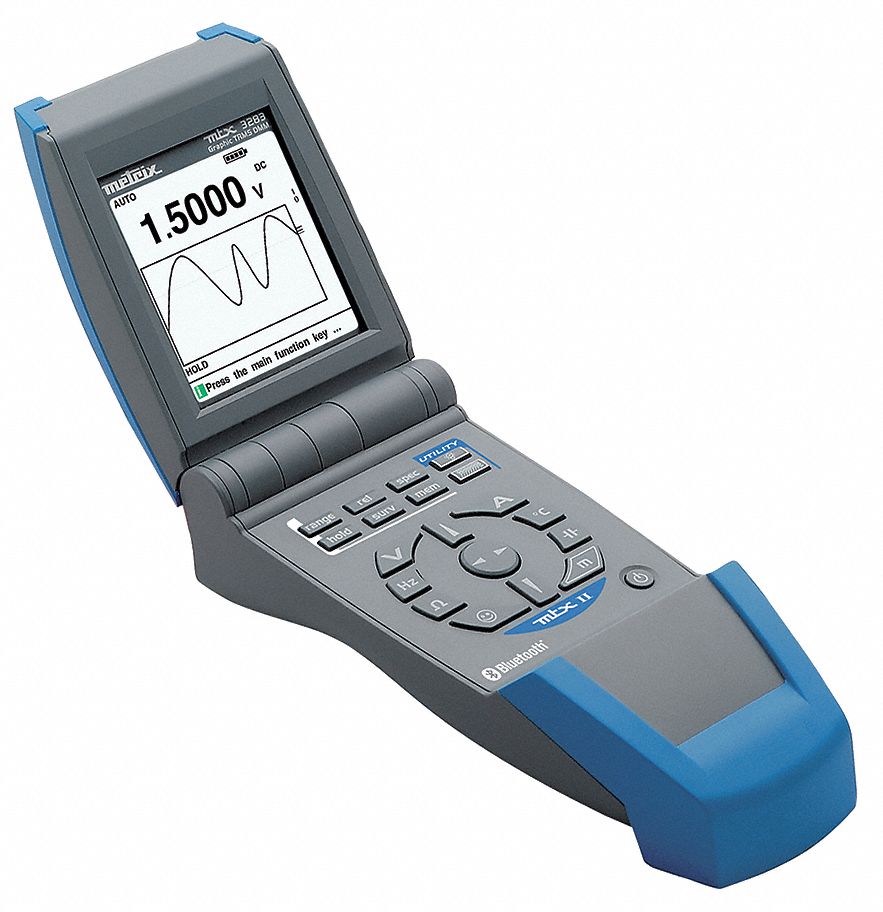

Digital Multimeter, 1000V, 20A, 50 MOhms

Enlarge Image

Item		Digital Multimeter
Max. AC Volts		1000
Max. DC Volts		1000
Max. AC Amps		20
Max. DC Amps		20
Max. Ohms		50 M Ohms
Basic DC Accuracy		0.0008
Counts		100,000
Battery Type		Rechargeable AAA
Safety Rating		CAT III 1000V, CAT IV 600V
Audible Continuity		Yes
AC Response		True RMS
Capacitance Range		100nF to 10mF
Frequency Counter Range		10,000 Hz to 2 MHz
Min./Max. Memory		Yes
Peak Hold		Yes
Interface		Optical RS-232, USB
Data Hold		Yes
Bar Graph		Yes
Display		Large Backlit LCD
Auto Ranging		Yes
Temp. Range		With Pt 100 or Pt 1000 Sensor Range 257 Degrees to 167 Degrees F (-125 Degrees to 75 Degrees C), -328 Degrees to 1472 Degrees F (-200 Degrees to 800 Degrees C), Measurement with A J of K Thermocouple K -40 Degrees to 2192 Degrees F (-40 Degrees to 1200 Degrees C), -40 Degrees to 1382 Degrees F (-40 Degrees to 750 Degrees C) (Type J)
Special Features		Graphical, BW 200 kHz, Measures Duty Cycle, Positive and Negative Pulses, Elapsed Time, Memory with Communications Downloading, Software Included
Duty Cycle		5 to 95%
Auto Power Off		Yes
Standards		UL/CUL
Includes		(2 Sets) 1.5m Color Coded (Red/Black) Leads, (2) Spare Fuses, TAS Adapter M to F Mini, USB Optic Cable, 110V US Power Supply, Software On CD
Manufacturers Warranty Length		3 yr.
